Height Adjustable Access Platforms

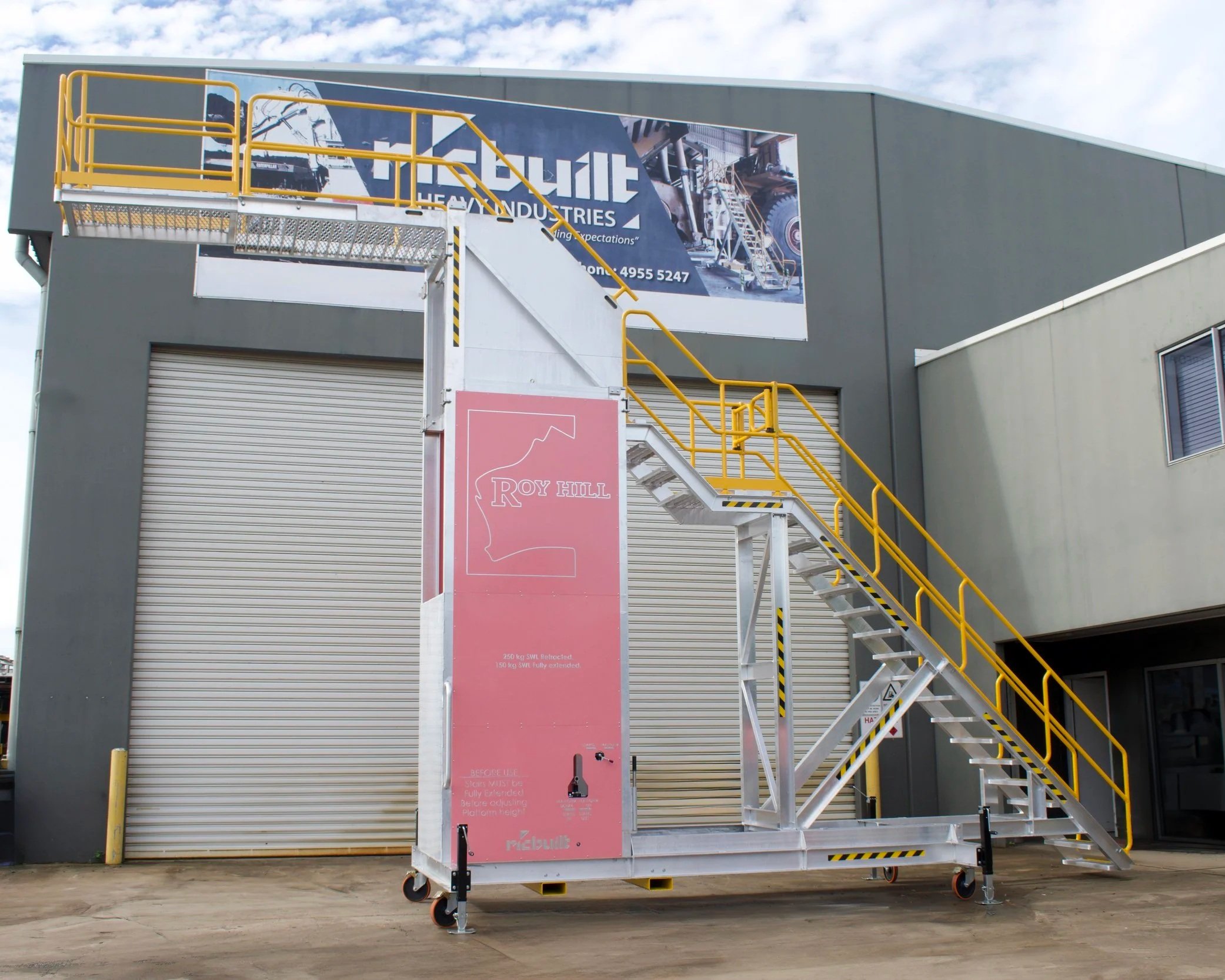

AP-770 Height Adjustable Platform with Overhang
This height-adjustable access platform is designed to provide safe and stable elevated access for maintenance and inspection work. It features a manual pump hydraulic system, allowing smooth height adjustment from 4.1 m up to 5.8 m without the need for external power.
The extendable overhang (1.7 m to 3.1 m) allows operators to safely work over equipment or hard-to-reach areas while maintaining platform stability. Built with a heavy-duty material, the platform is suitable for demanding industrial and mining environments.
Key Features:
Adjustable working height: 4.1 m – 5.8 m
Overhang extension: 1.7 m – 3.1 m
Manual pump hydraulic lift system
Heavy-duty, low-maintenance design
Full safety handrails and non-slip decking
Locking castors or forklift pockets for easy positioning
Compliant with relevant Australian safety standards.
AP-600 Height Adjustable Platform
This height-adjustable access platform is engineered to provide safe, stable, and versatile access for maintenance, servicing, and inspection tasks across a range of machinery and work environments. The adjustable deck allows operators to position the platform at the optimal working height to reduce manual handling risks and improve accessibility.
Height Specifications
Minimum deck height: 2,763 mm
Maximum deck height: 3,563 mm (with deck fully extended)
Adjustment increments: 200 mm steps
Applications
Servicing of dump truck chassis, trays, engines, and components
Access to elevated work areas where fixed platforms are impractical
Workshop maintenance
Field service environments requiring height adjustment
Multi-model equipment servicing (e.g., 789, 793, 830, 930 platforms, etc.)

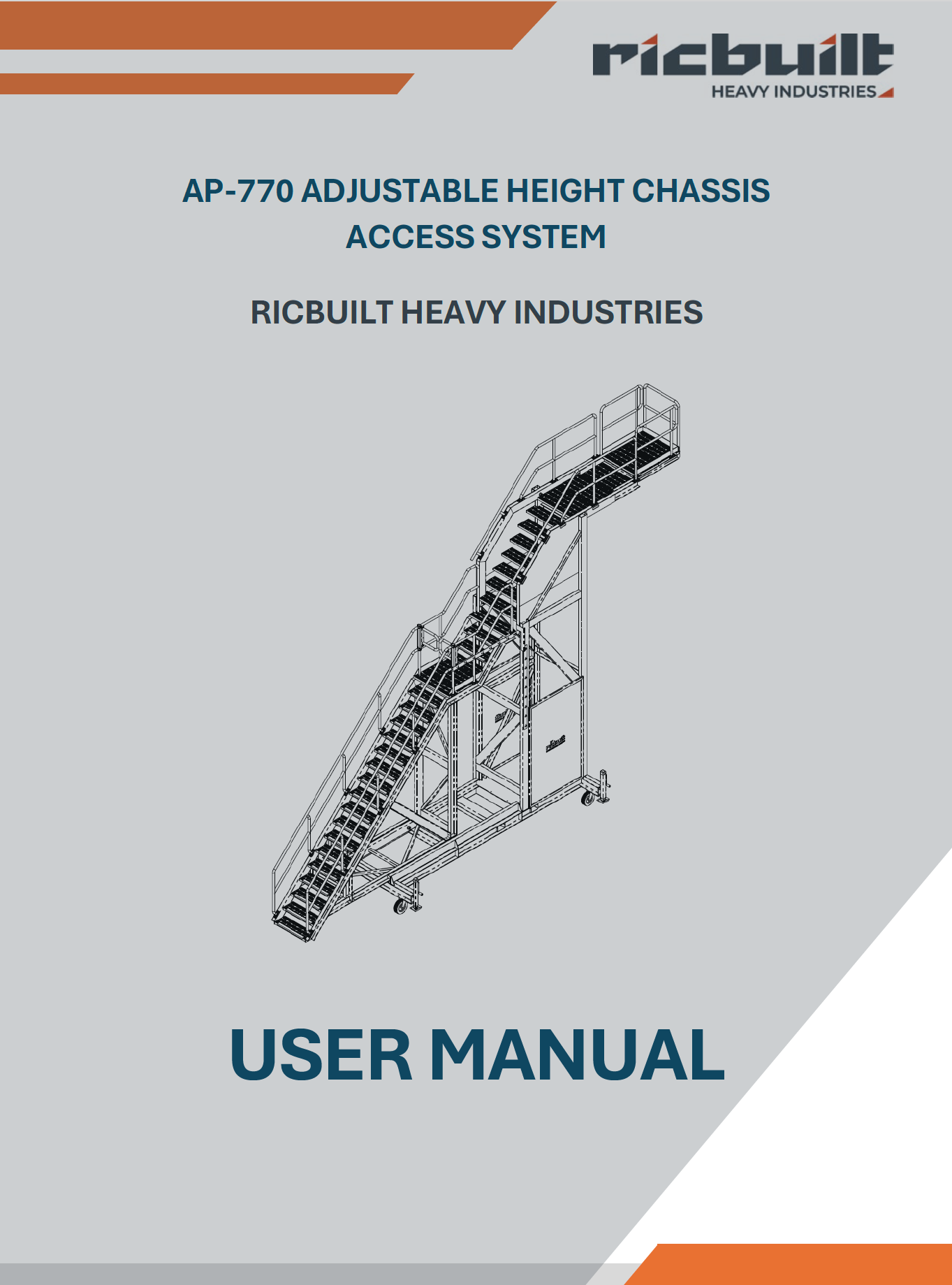

Operations Manuals
View the Instructional Video here.
APPLICABLE STANDARDS
Design and verification shall comply with the following Australian Standards:
- AS 1170 – Structural Design Actions
- AS 1664.1 – Aluminium Structures – Limit State Design
- AS 1657 – Fixed Platforms, Walkways, Stairways, and Ladders
DESIGN & VERIFICATION
Load Requirements:
- Walkways, landings, and stair treads designed for uniformly distributed and concentrated loads as per AS 1657.
- Guardrails and handrails to resist specified horizontal and vertical loads.
Environmental Loads:
- Wind loads determined per AS 1170.2, accounting for indoor/outdoor application, wind region, and elevation.
Structural Validation:
- Strength and stability verified through FEA and supporting hand calculations.
- Aluminium structural elements designed per AS 1664.1.
Dimensional Compliance:
- All platform components to meet clearance and dimension criteria outlined in AS 1657.
Additional Considerations:
- Project-specific loads, operational constraints, or environmental conditions assessed where applicable.
CERTIFICATION
All designs to be reviewed and signed off by a qualified structural engineer, with formal certification provided upon verification.
